Durston® DRM W130E Wire Rolling Mill
Durston® DRM W130E Wire Rolling Mill

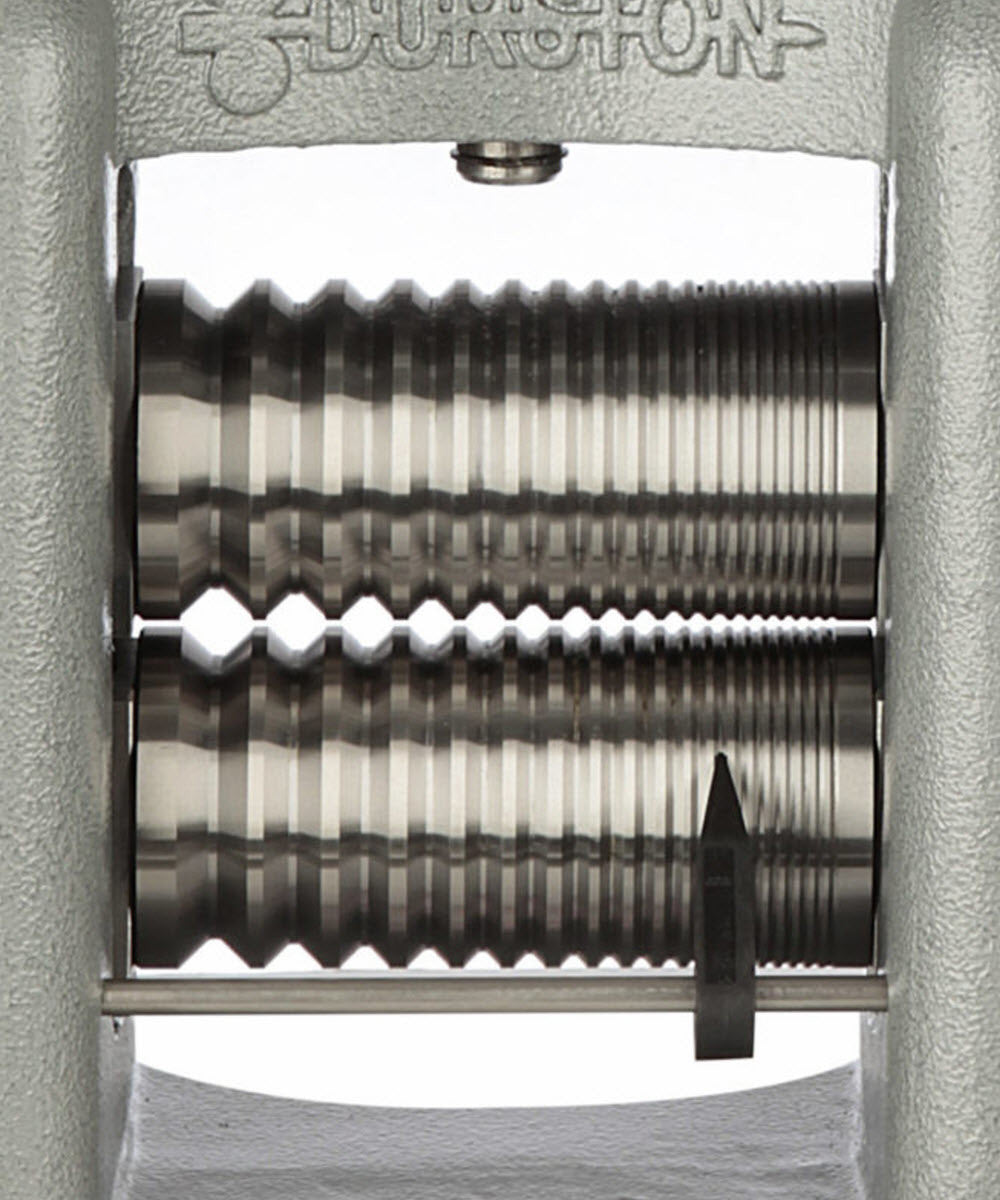

The Durston® DRM W130E Rolling Mill, The perfect solution for exclusively rolling Wire, the main rolls include 19 square grooves ranging from 8mm to 1mm and the side extension giving the ability to roll half rounds from 4mm to 1.5mm (4 groves)
The full range of groove sizes on the main roll are as follows, 8mm , 7mm, 6mm, 5.2mm, 4.5mm, 3.9mm, 3.4mm, 3mm, 2.5mm, 2.2mm, 1.9mm, 1.7mm, 1.5mm, 1.35mm, 1.2mm, 1.15mm, 1.1mm, 1.05mm, 1mm. These are the minimum sizes for each groove when the rolls are fully closed, as you open the rolls, larger sizes can be achieved.
This manually operated Rolling Mill uses a direct drive system with self lubricating bearings giving maintenance free use.
Adjust this Rolling Mill with ease using the top mounted wheel, calibrated to give precise accuracy, as with all Durston® Rolling Mills in the DRM Range, the body is solid cast iron giving ultimate strength, which combined with RC64 induction hardened rolls ensures a lifetime of rolling with professional results. Instructions.
- ‘W130’ Wire Rolling Mill
- ‘E’ Side Extension with 4 Half Round Grooves (4 to 1.5mm)
- Direct Drive
- 19 Wire Rolling Grooves (Main Roll)

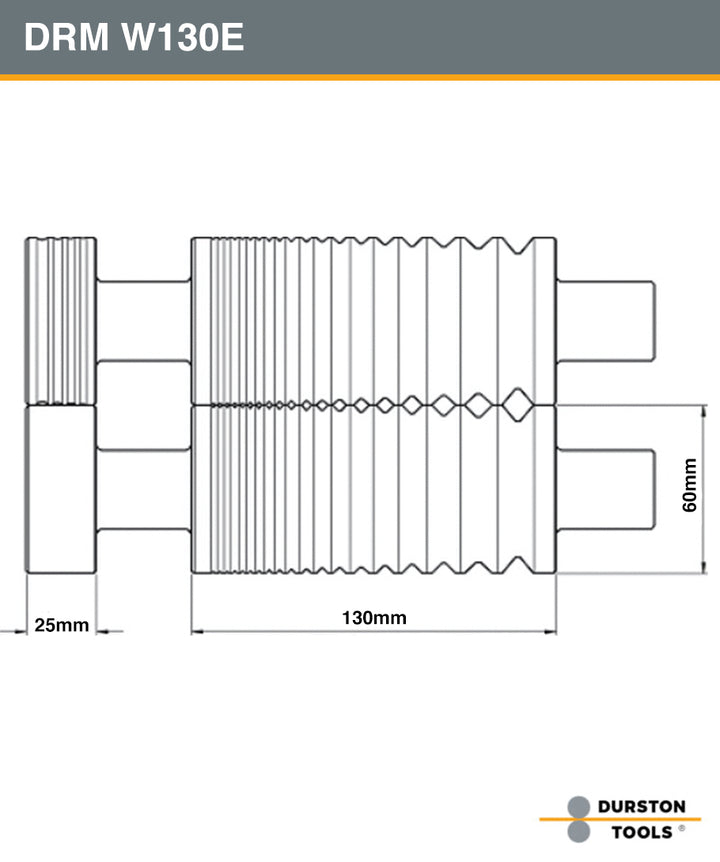

- Roll Diameter 60mm
- Roll Width 130mm
- Made in England.
- Please contact us to verify availability. If item is not in stock, please allow 2-3 weeks for delivery time.
- Weight: 48 kg
- Product Weight: 36.8 kg
- Product Length: 335 mm
- Product Width: 220 mm
- Product Height: 365 mm
- Number of Grooves: 19
- Roller Type: Wire
- Roller Diameter: 60 mm
- Roller Length: 130 mm
- Side Extensions: 4, 3, 2, 1.5 mm
- Max. Wire Capacity: 8 mm
